The most profitable

ECO Standard padel court

80×80×3 mm posts between glass panels and double-tube corner posts, 10 mm tempered glass (12 mm optional) fixed with A2 stainless steel bolts to brackets screwed to the post. The most efficient solution for municipal facilities and multi-court projects.

Render of the ECO Standard court with blue turf

Description

Modular structure with back-wall posts

The ECO is manufactured in the same plant and from the same steel as the rest of the range. Between every two glass panels stands an 80×80×3 mm post, 3000 mm high; at the corners, double-tube posts on a 215×215×10 mm base plate, and self-supporting modules on the sides. The glass is 10 mm, or 12 mm as an option, fixed with A2 stainless steel bolts to brackets screwed to the posts. It is the right configuration for intensive use, with the best balance between investment and performance.

ECO Standard padel court — Corner detail

10/12

mm tempered glass

8

LED floodlights

16

posts, 3000 mm high

EN 12150

tempered glass

Technical views

Perspective, plan, front and side views

The same views included in the PDF datasheet.

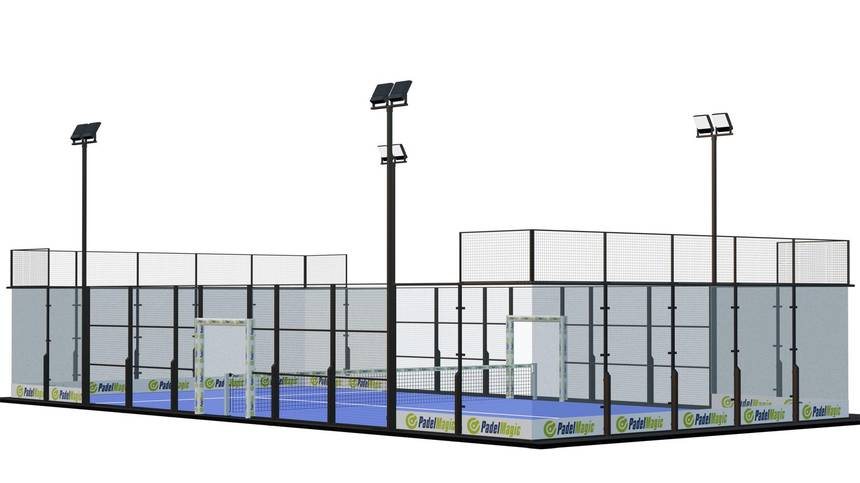

ECO Standard padel court — Main perspective
Main perspective
ECO Standard padel court — Top view
Top view

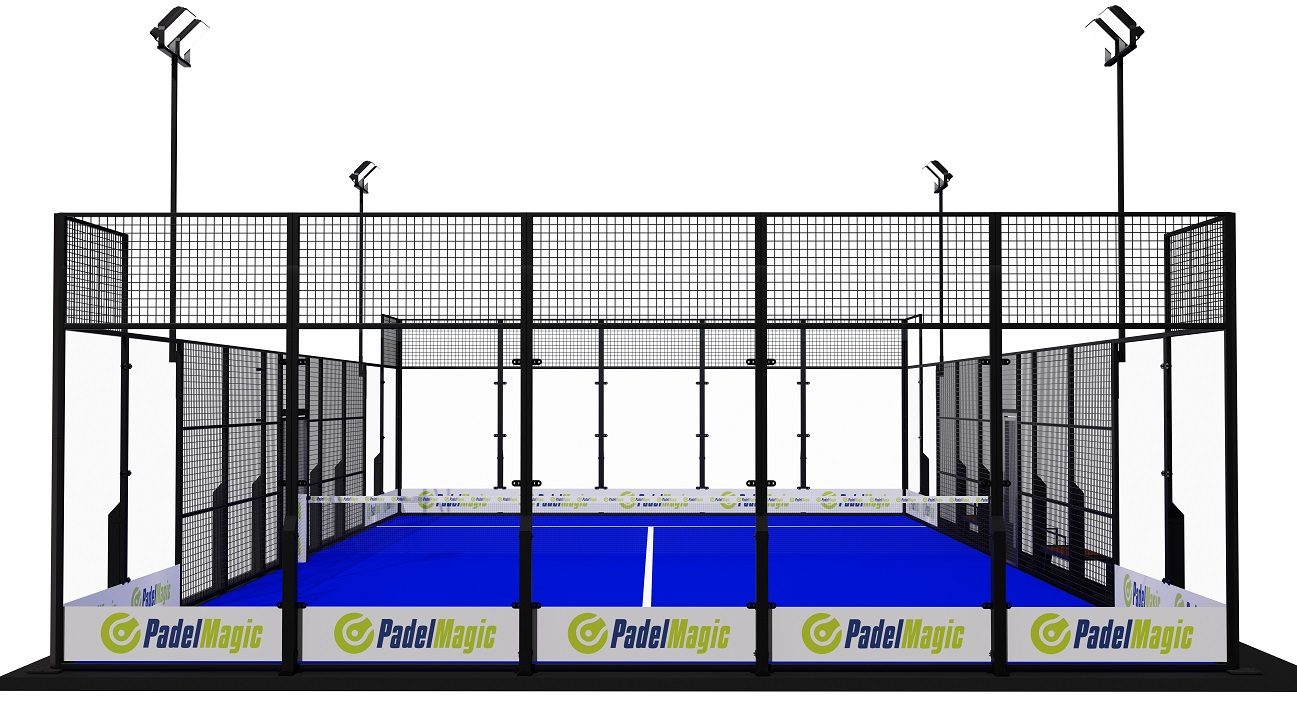

ECO Standard padel court — Front elevation
Front elevation

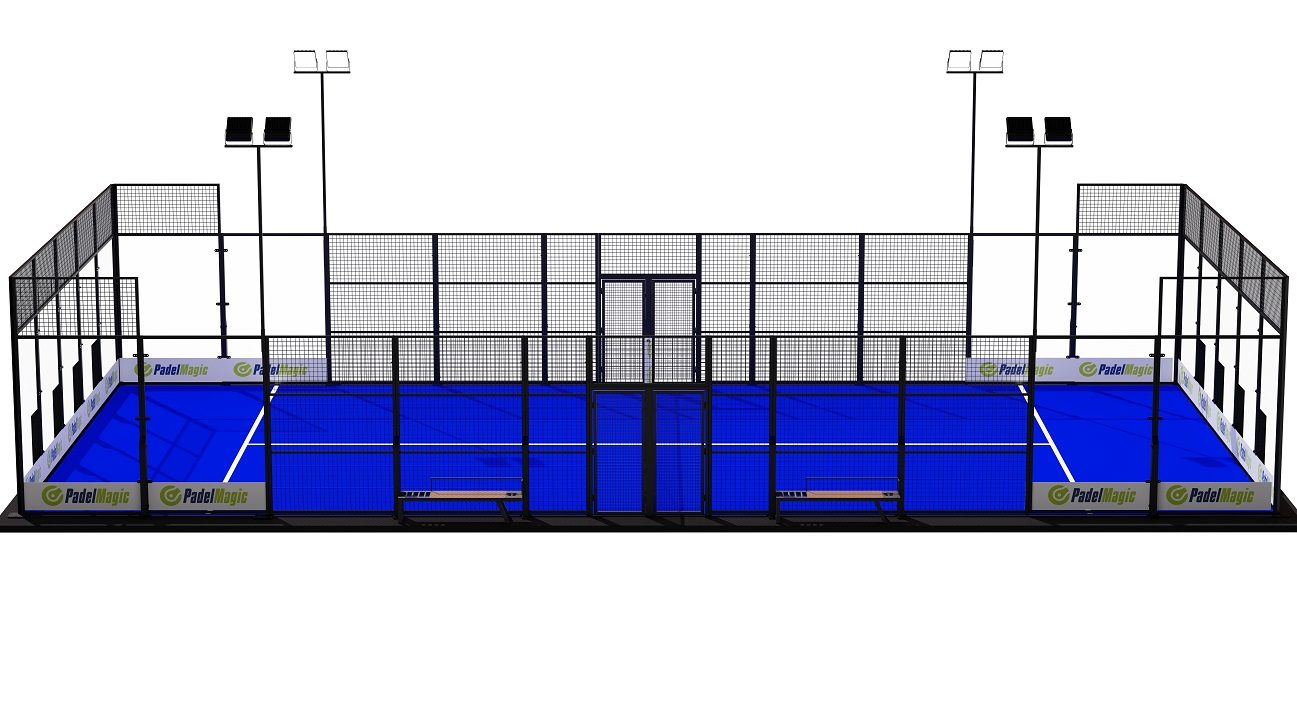

ECO Standard padel court — Side view
Side view

Datasheet

Full specification

Scope of supply, with dimensions and applicable standards.

ECO Standard padel court — Main perspective

Select a point on the court or an item in the list.

  1. Dimensions
    20 × 10 m playing surface, compliant with International Padel Federation regulations. Minimum recommended clear height of 6 m for indoor installations.
    Posts
    12 × 80×80×3 mm between glass panels and 4 double-tube corner posts (100×40 + 80×40 mm) on a 215×215×10 mm plate, 3000 mm high
    Modules
    8 × 3000×2000 mm · 4 × 3000×1030 mm · 2 × 870×1940 mm · all with 40×40×2 mm structural tube and 50×50×4 mm mesh
    Upper frame
    50×50×4 mm welded mesh · 2000×1000 mm steel panel for 2995×1995×10 mm glass (12 mm optional)
    Anchoring
    M12×110 mm wedge anchor in every hole of the base plate
    Corrosion
    C3, C4 or C5 certificate (ISO 12944) from the paint manufacturer
  2. Fasteners
    Metric: M10 DIN 933 8.8 on the mesh and M8 DIN 7991 A2 stainless steel on the glass · glass brackets fixed to the post with 6.3×25 mm self-drilling screws (DIN 7504 K) · black cover cap on every bolt
  3. Tempered glass
    18 panels of 3000×2000 mm, 10 mm (12 mm optional) · EN 12150 · 6 brackets per panel, screwed to the post, with neoprene strip
    Replacement
    Tempered glass in stock at the factory: replacement within days, with no dependence on sea freight
  4. Light poles
    4 poles 6000 mm high, integrated in the enclosure as on the Panoramic and the Top: straight 60×60×2 mm, curved 40×40×3 mm or Z-shaped 40×40×2 mm
    Floodlights
    8 asymmetric 200 W LED floodlights · 579 lx average and 0.77 uniformity in DIALux study · optional 240 W or 320 W asymmetric floodlights
  5. Access
    4 access modules of 1000×2000 mm · free access or swing door with lock · automatic sliding door optional (retrofit kit)
    Automatic opening
    Automation module with opening linked to the online booking
  6. Turf
    ACT Score turf as standard, for intensive use · optional: ACT Premier or Mondo
    Installation
    Seaming tape and adhesive for the turf
  7. Includes
    8 asymmetric LED floodlights (200 W) · Tempered glass, 10 mm (12 mm optional) · Silica sand and playing net · Bolt, anchor and cap kit · Seaming tape and adhesive for the turf
    Delivery and assembly
    Delivery in 3–4 weeks · assembly by our own team or with a step-by-step guide · client provides lifting machinery
    Optional
    240 W or 320 W asymmetric floodlights · Automatic sliding door (retrofit kit for any court) · Booking software + door and light automation (ReservaDeportes, over 4G) · Interactive dual 43" screen, cameras and wireless Magic Button · Anti-bird net kit · Upper safety net · Branded corners and over-net · Any RAL colour · logos in any area · C5 anti-corrosion certificate · Maintenance service (net, mesh, glass)

Download the PDF datasheet

The model

Structure for intensive municipal use

The ECO shares plant and steel with the top of the range. Its structure is carried by 80×80×3 mm posts between every two glass panels and double-tube corner posts, with 10 mm glass (12 mm optional) fixed to brackets screwed to the post. It meets intensive municipal use and optimises the investment in multi-court facilities.

  • 80×80×3 mm posts, 3 m high, between every two glass panels
  • 10 mm glass (12 mm optional)
  • 4 access modules of 1000×2000 mm
  • Metric bolts covered with caps
Compare the four models
Structure for intensive municipal use

Customisation

The court with your club’s brand

Four elements of the court carry your logo. You can see them with your brand in the 3D configurator before requesting a quote.

Reinforcement feet
Reinforcement feet External plate anchored to the slab that braces the side enclosure, with the club logo. 8 per court, 1,200 mm high.
Net band cover
Net band cover 100 × 9,900 mm cover over the top band of the net, with the logo repeated along the whole net. It is the most visible branding in every match photo.
Access protections
Access protections On both posts and the lintel of each access and on the net post: they cushion the impact where players collide most and carry the logo large, vertical and horizontal.

Real installations

Installations completed with this model

Courts manufactured and installed by PadelMagic, with the club name and country.

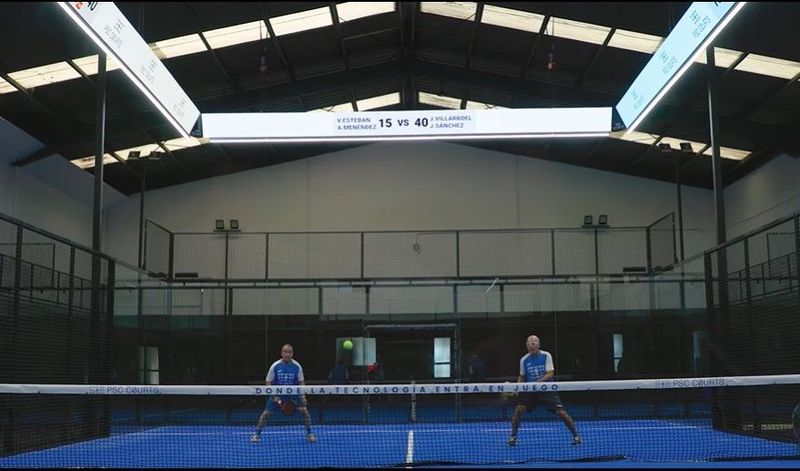

PSC Court, Valladolid
España PSC Court, Valladolid

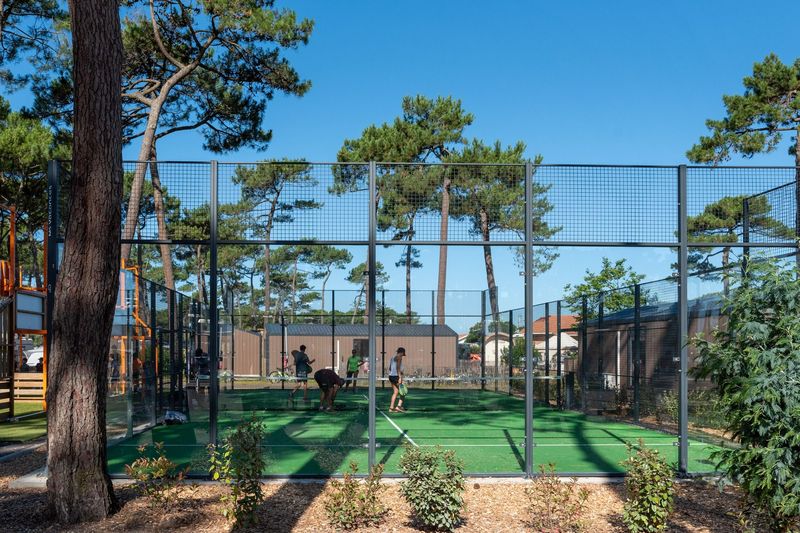

Camping Campéole Plage Sud
Francia Camping Campéole Plage Sud

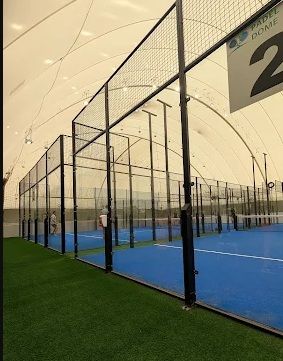

Padel Dome, Irlanda
Irlanda Padel Dome, Irlanda

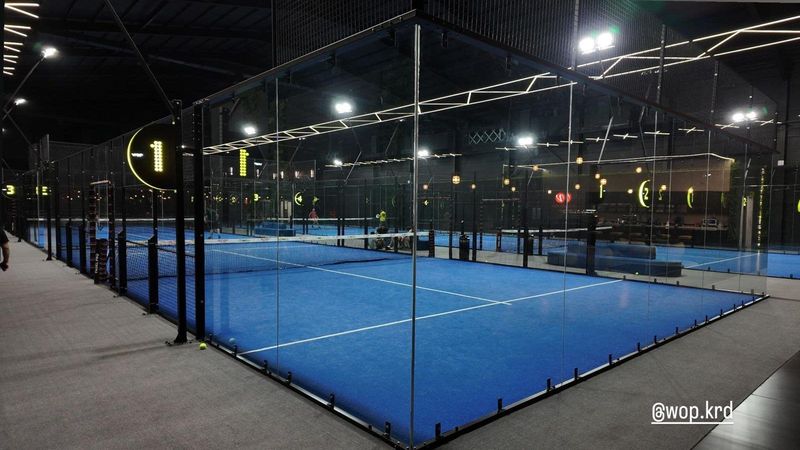

World of Padel, Kurdistan
Irak World of Padel, Kurdistan

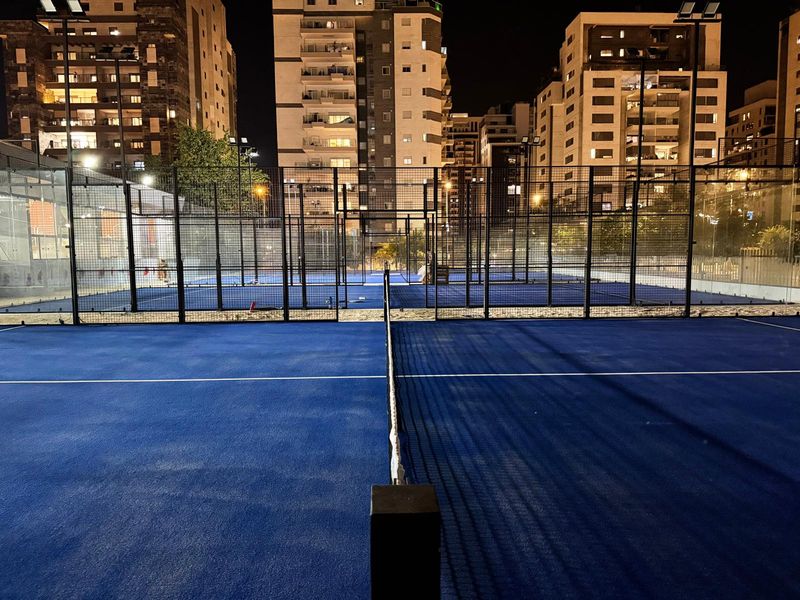

Padel Time Club, Israel
Israel Padel Time Club, Israel

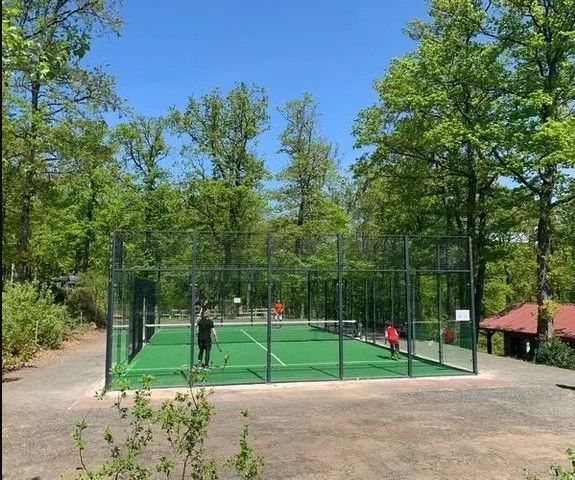

Camping Huttopia Wattwiller, Francia
Francia Camping Huttopia Wattwiller, Francia

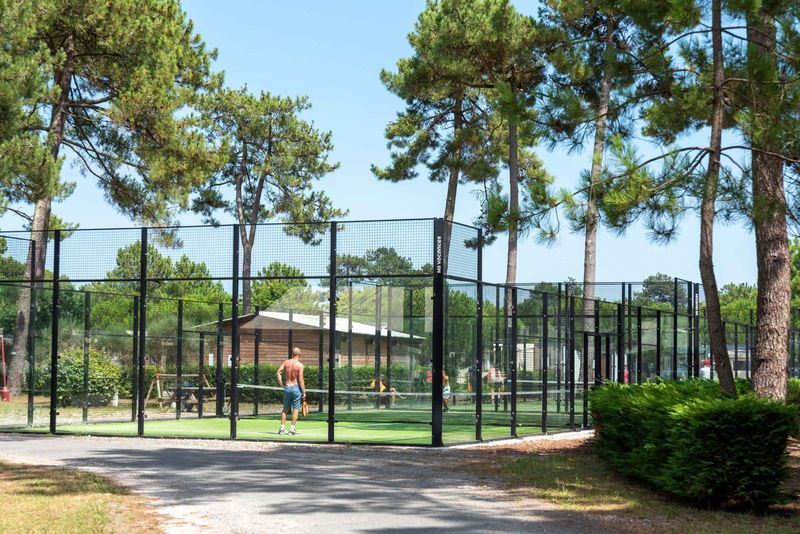

Camping Médoc Plage, Francia
Francia Camping Médoc Plage, Francia

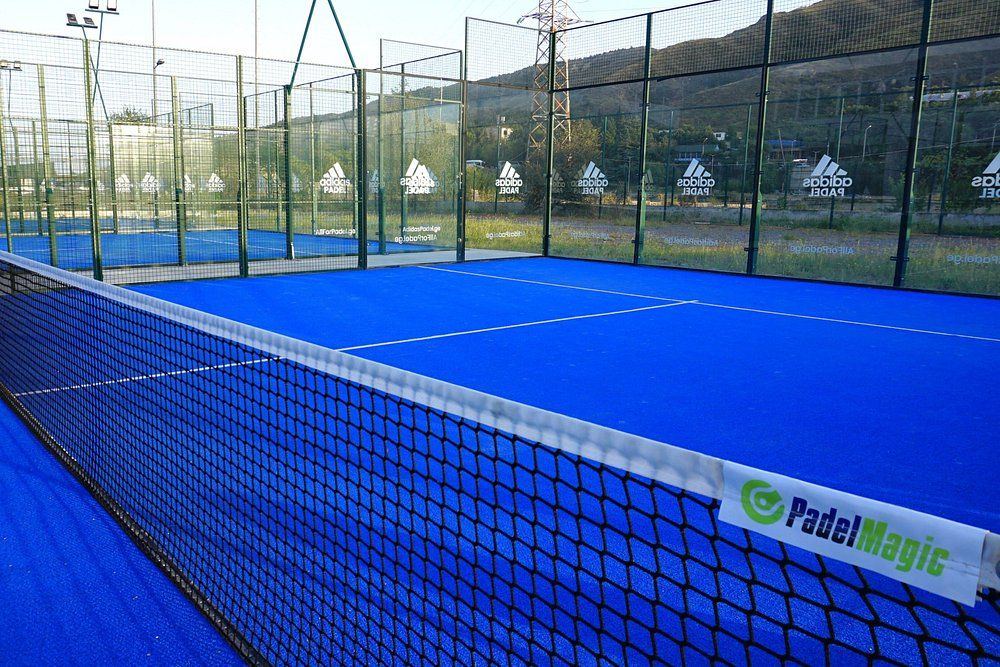

Sport Scape Tbilisi Georgia
Georgia Sport Scape Tbilisi Georgia

Before deciding

Frequently asked questions

Does PadelMagic manufacture its own courts?

Yes. The structure is cut, welded and painted at our factory in Valladolid. We also manufacture courts for other brands, which sell them under their own logo.

What is the lead time to replace a glass panel?

We keep tempered glass in stock at the factory, so a replacement is made within days. When glass is imported by sea, a court can remain out of service for up to two months.

Who carries out the installation?

Our own installation team, the same on every project, whether in Copenhagen, Tbilisi or the Maldives. Any adjustment on site is handled directly by the manufacturer, with no intermediaries.

Can the order status be tracked?

Yes. The client has access to our manufacturing intranet, which shows the stage of each part (welding, painting and loading) with the dates the workshop records as each stage is closed. It includes the proforma, the packing list and a direct communication channel linked to the order.

Does it meet competition standards?

The tempered glass complies with EN 12150-1 and EN 12150-2, and the playing surface measures 20 × 10 m in accordance with International Padel Federation rules. The standard turf is ACT Score, for intensive use, with ACT Premier or Mondo as options.

Can it be manufactured in the club’s colours?

Yes. The structure is oven-cured powder coated in any RAL colour. As manufacturers, we produce corporate colours, special dimensions and custom vinyls to order, without being limited to a closed catalogue.

Can technology be added after installation?

Yes. The structure leaves the factory with cable routing and fixings already provided, so the LED scoreboard, cameras or smart bench can be added later with no additional works and no exposed trunking.
