Competition

Top Professional padel court

Self-supporting panoramic back walls with no pillars, 12 mm tempered glass and 100×50×3 mm structural tube joined with machined inner joint bushings. Designed for top-level competition and intensive professional use.

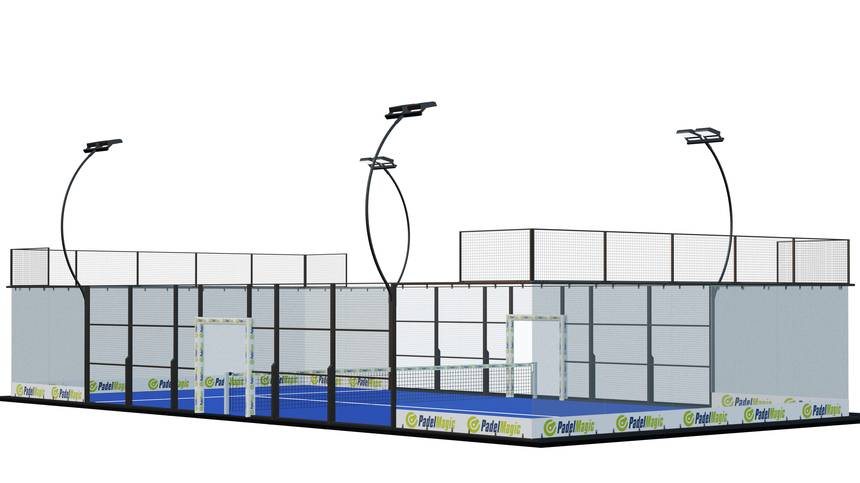

Render of the Top Professional court with blue turf

Description

Machined joints, no welding

The entire back-wall structure is joined with machined parts bolted with DIN 7380 M8×20, with no welding. Bolted joints on machined parts preserve the geometry of the back wall and its resistance to repeated ball impacts above 100 km/h, the usual load in competition. Assembly is also faster and more precise. Move the slider to compare: the Top has a back wall free of posts and 4 m high mesh; the standard court divides the glass with posts.

Top Professional padel court — Corner detail

12

mm glass

8

LED floodlights

100×50×3

back wall tube

+180

km/h wind

Technical views

Perspective, plan, front and side views

The same views included in the PDF datasheet.

Top Professional padel court — Main perspective
Main perspective

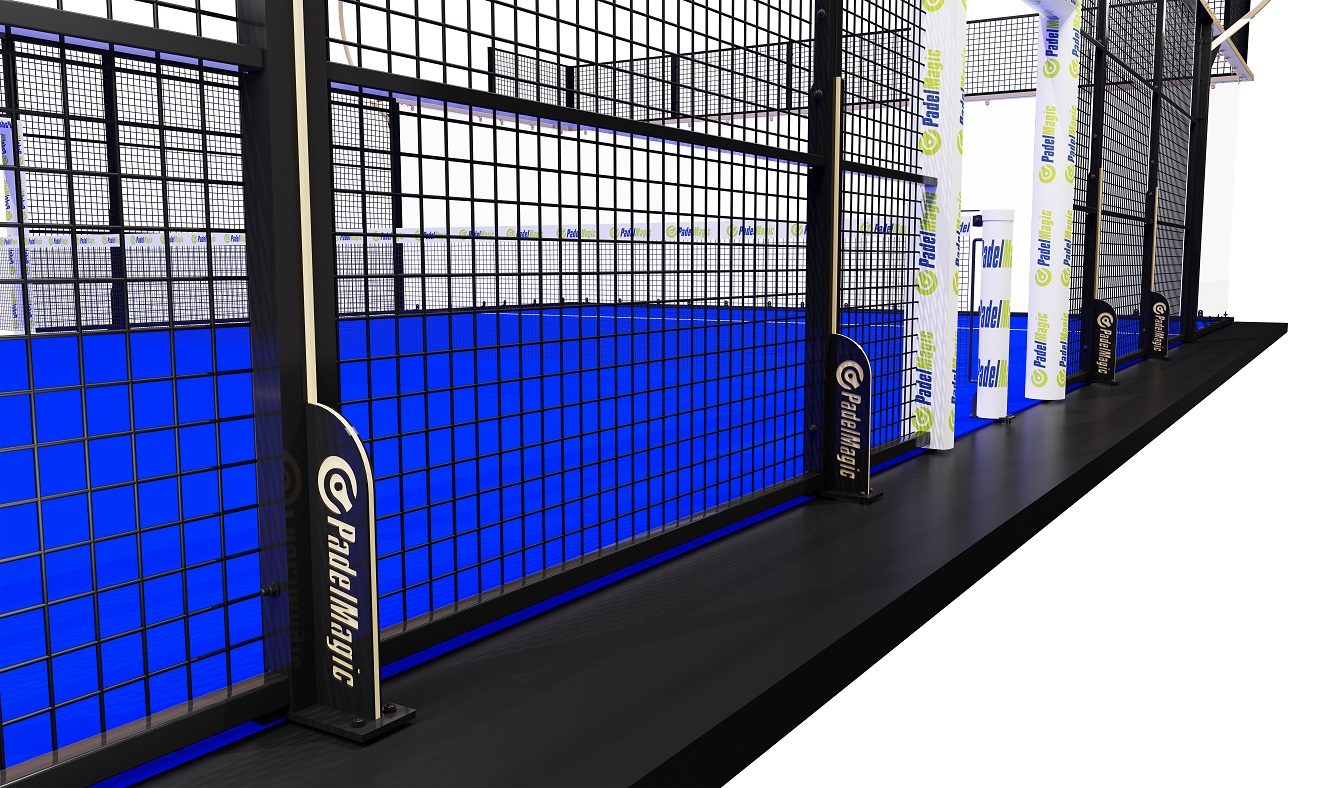

Top Professional padel court — Top view
Top view

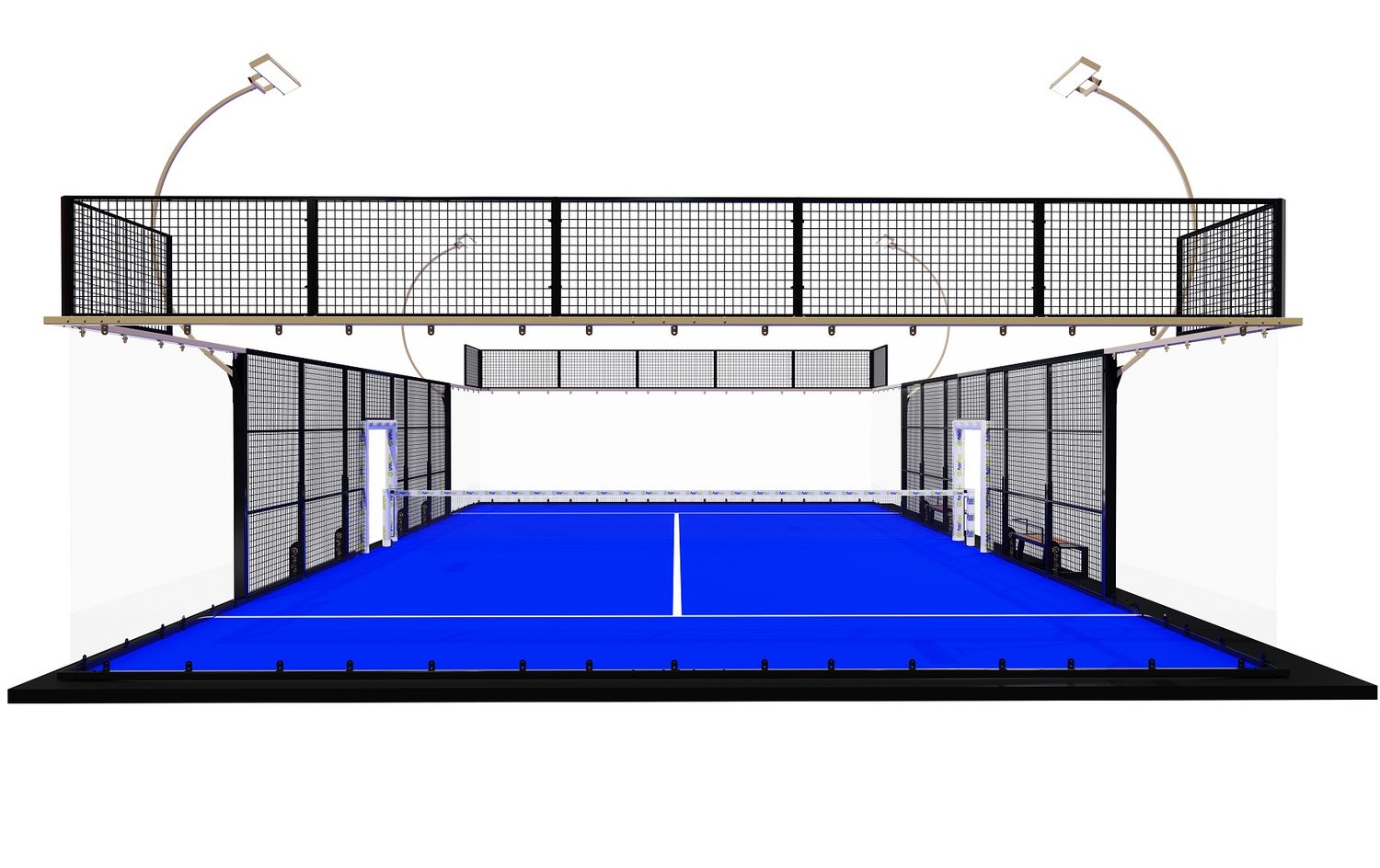

Top Professional padel court — Front elevation
Front elevation

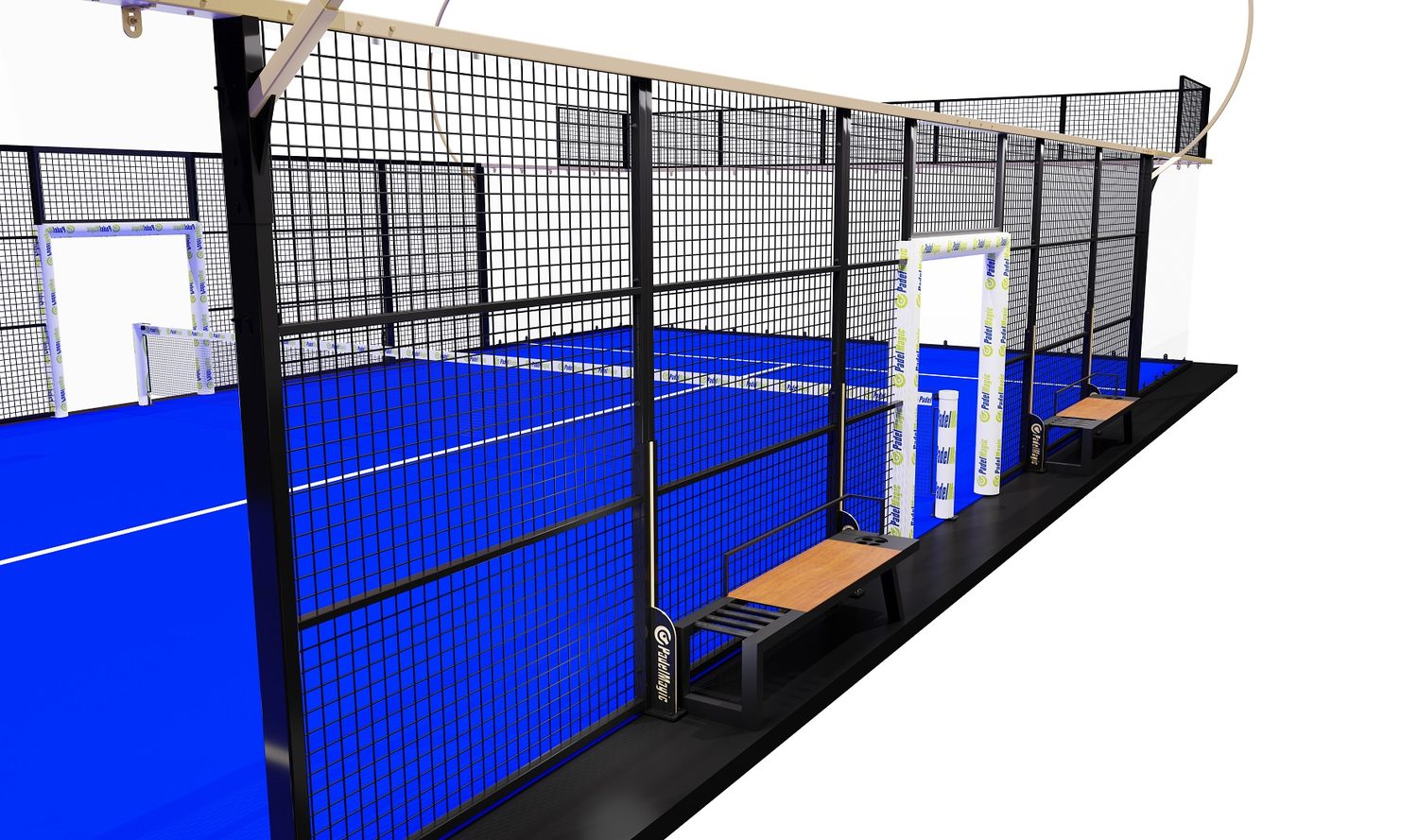

Top Professional padel court — Side view
Side view

Datasheet

Full specification

Scope of supply, with dimensions and applicable standards.

Top Professional padel court — Main perspective

Select a point on the court or an item in the list.

  1. Dimensions
    20 × 10 m playing surface, compliant with International Padel Federation regulations. Minimum recommended clear height of 6 m for indoor installations.
    Panoramic back wall
    100×50×3 mm structural tube · panoramic back walls without posts, self-supporting thanks to 9 tempered glass panels 12 mm thick
    Modules
    8 × 3000×2000 mm · 4 × 3000×1030 mm · 2 × 870×1940 mm · all with 40×40×2 mm structural tube and 50×50×4 mm mesh
    Upper frame
    50×50×4 mm welded mesh · 2000×1000 mm steel panel for 2995×1995×12 mm glass
    Posts and ring
    Folded U support with double brace and anchor plate · perimeter ring as standard with upper hatches for lighting and data cables
    Tube thickness
    3 mm where wind load and impact concentrate · 2 mm on the mesh-panel frames · 4 mm on every joint bushing
    Anchoring
    Mechanical anchor ø12 × 110 mm · torque 110 Nm
    Wind and corrosion
    Designed for winds above 180 km/h, signed by a structural engineer · C3, C4 or C5 certificate (ISO 12944) from the paint manufacturer
  2. Joints
    4 mm inner joint bushings: full tube, machined and factory-threaded · DIN 7380 M8 metric bolts · no drilling on site
    Fasteners
    Metric bolts only (DIN 7380 M8 at the bushings, DIN M10 elsewhere), every bolt covered with a black cap
  3. Tempered glass
    18 panels of 12 mm, 3000×2000 mm · EN 12150 · methacrylate or silicone fixing · rests on tube
    Replacement
    12 mm glass in stock at the factory: replacement within days, also during a competition
  4. Floodlights
    8 asymmetric 200 W LED floodlights · 579 lx average and 0.77 uniformity in DIALux study · optional 240 W or 320 W asymmetric floodlights · 6000 mm high poles, integrated: straight 60×60×2 mm, curved 40×40×3 mm or Z-shaped 40×40×2 mm
  5. Access
    Free access · swing door with lock or automatic sliding door optional
    Automatic opening
    Automation module with opening linked to the online booking
  6. Playing surface
    ACT Score turf as standard · optional: ACT Premier or Mondo · FEP and FIP 2026 certified · used at the Gustavo Pratto Academy
    Installation
    Seaming tape and adhesive for the turf
  7. Includes
    8 asymmetric LED floodlights (200 W) · 12 mm tempered glass · Silica sand and playing net · Metric DIN 7380 bolt kit with caps · 4 mm machined inner joint bushings · Seaming tape and adhesive for the turf
    Delivery and assembly
    Delivery in 3–4 weeks · assembly by our own team or with a step-by-step guide · client provides lifting machinery and props
    Optional
    240 W or 320 W asymmetric floodlights · Swing or automatic sliding doors (retrofit kit) · Booking software + door and light automation (ReservaDeportes, over 4G) · Interactive dual 43" screen, cameras and wireless Magic Button · Anti-bird net kit · Upper safety net · Branded corners and over-net · Spare glass and maintenance kit · Any RAL colour · C5 certificate

Download the PDF datasheet

The model

Structure for top-level competition

The back wall is built in 100×50×3 mm tube joined with machined inner joint bushings, with no welding, and the poles have a folded U support with double brace and anchor plate. The perimeter ring, fitted as standard, includes upper access points for lighting and data cables.

  • Folded U support with double brace
  • Perimeter ring with access points as standard
  • Straight, Z or curved lighting posts
  • 12 mm glass with acrylic or silicone
Compare the four models
Structure for top-level competition

Customisation

The court with your club’s brand

Four elements of the court carry your logo. You can see them with your brand in the 3D configurator before requesting a quote.

Reinforcement feet
Reinforcement feet External plate anchored to the slab that braces the side enclosure, with the club logo. 8 per court, 1,200 mm high.
Corner trim
Corner trim Folded sheet angle, powder coated like the structure, covering the upper mesh corner. The logo and the name are laser cut on both faces.
Net band cover
Net band cover 100 × 9,900 mm cover over the top band of the net, with the logo repeated along the whole net. It is the most visible branding in every match photo.
Access protections
Access protections On both posts and the lintel of each access and on the net post: they cushion the impact where players collide most and carry the logo large, vertical and horizontal.

Real installations

Installations completed with this model

Courts manufactured and installed by PadelMagic, with the club name and country.

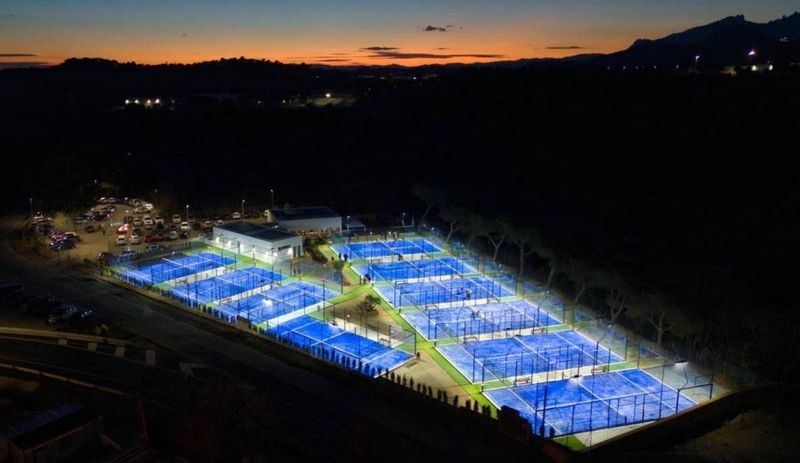

Vilapadel, Viladecavalls
España Vilapadel, Viladecavalls

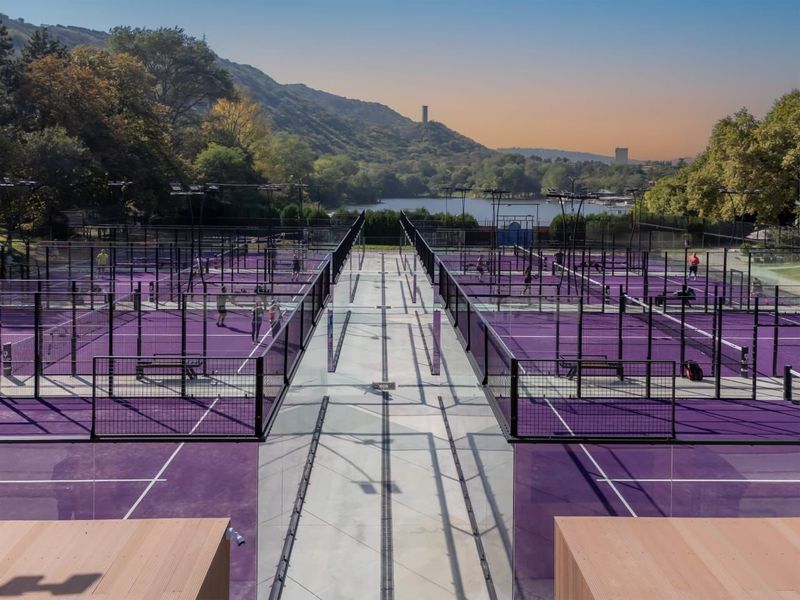

Kus Tba Padel, Georgia
Georgia Kus Tba Padel, Georgia

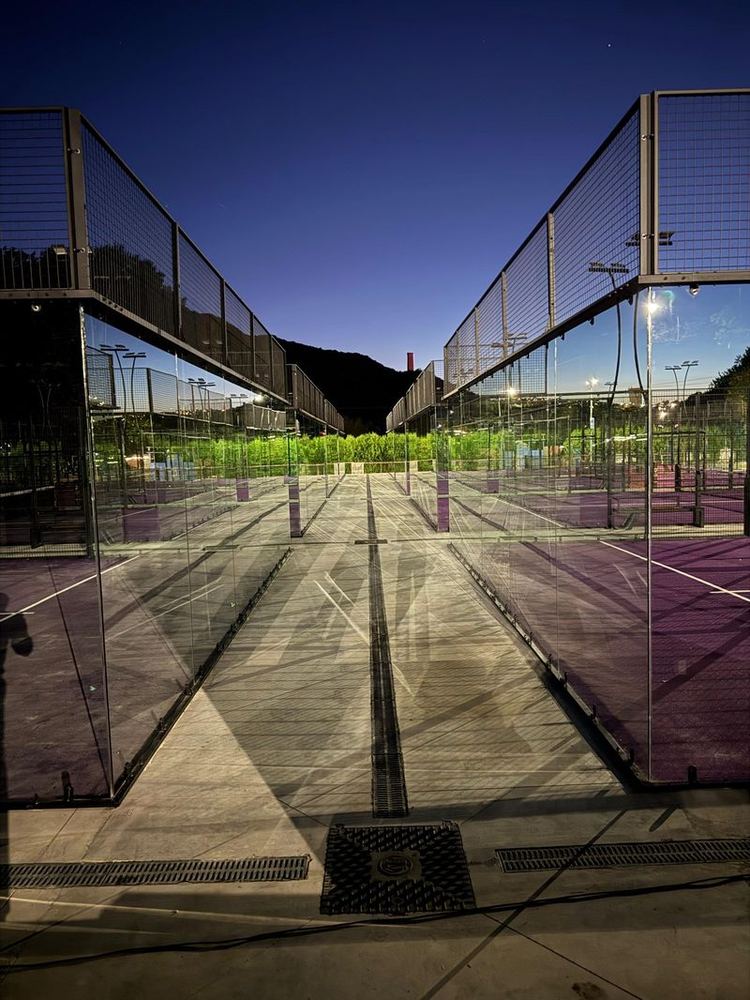

Kustba Padel, Georgia
Georgia Kustba Padel, Georgia
PadelMagic delivers Padel courts to Emirates: Dubai and Qatar
Emiratos PadelMagic delivers Padel courts to Emirates: Dubai and Qatar

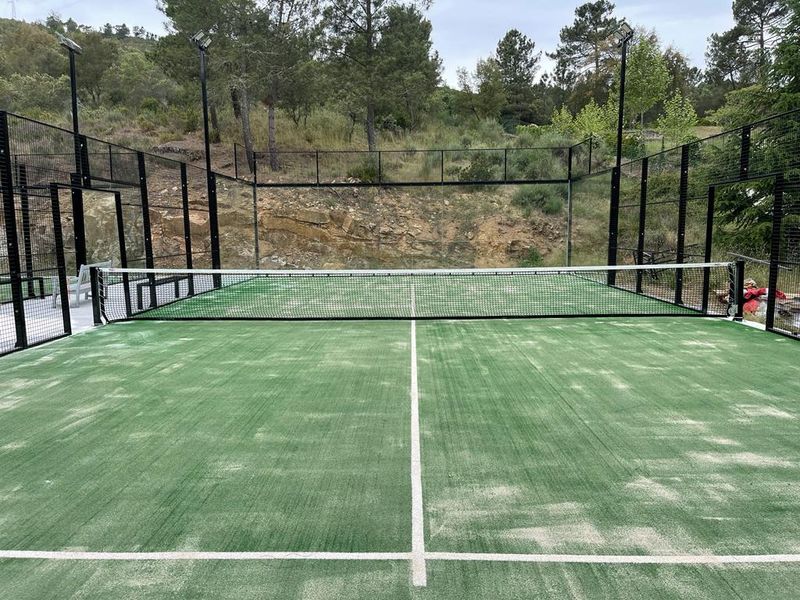

We are back at Portugal, new padel court in Hotel Vidago Palace.
Portugal We are back at Portugal, new padel court in Hotel Vidago Palace.

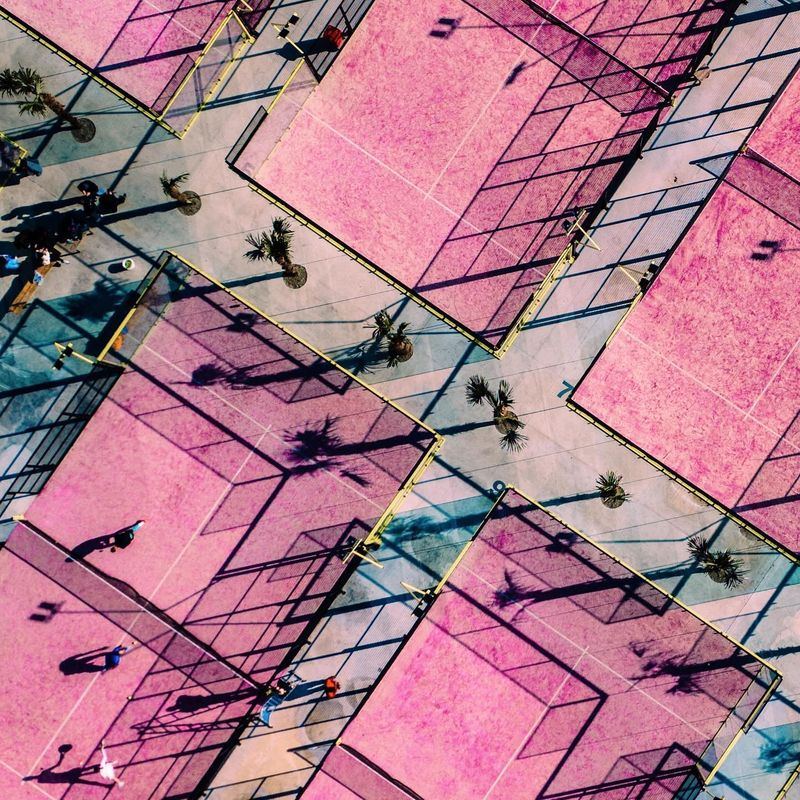

Gym Breeze, Tbilisi Georgia
Georgia Gym Breeze, Tbilisi Georgia

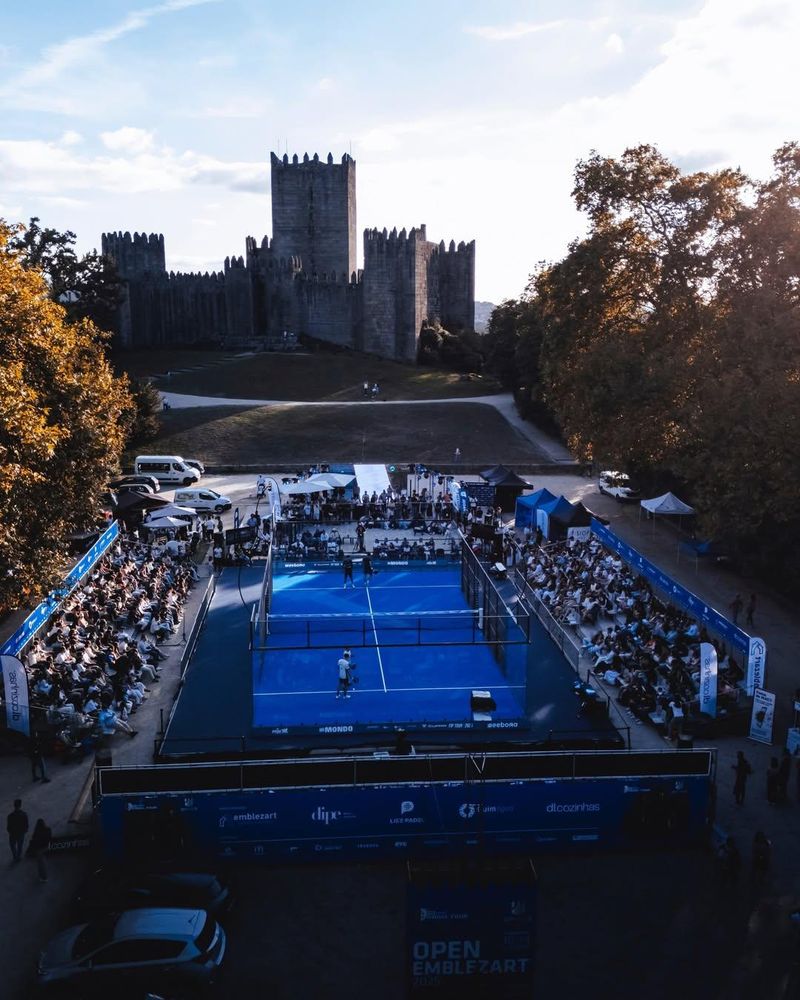

FIP Silver GUIMARAES 2025
Portugal FIP Silver GUIMARAES 2025

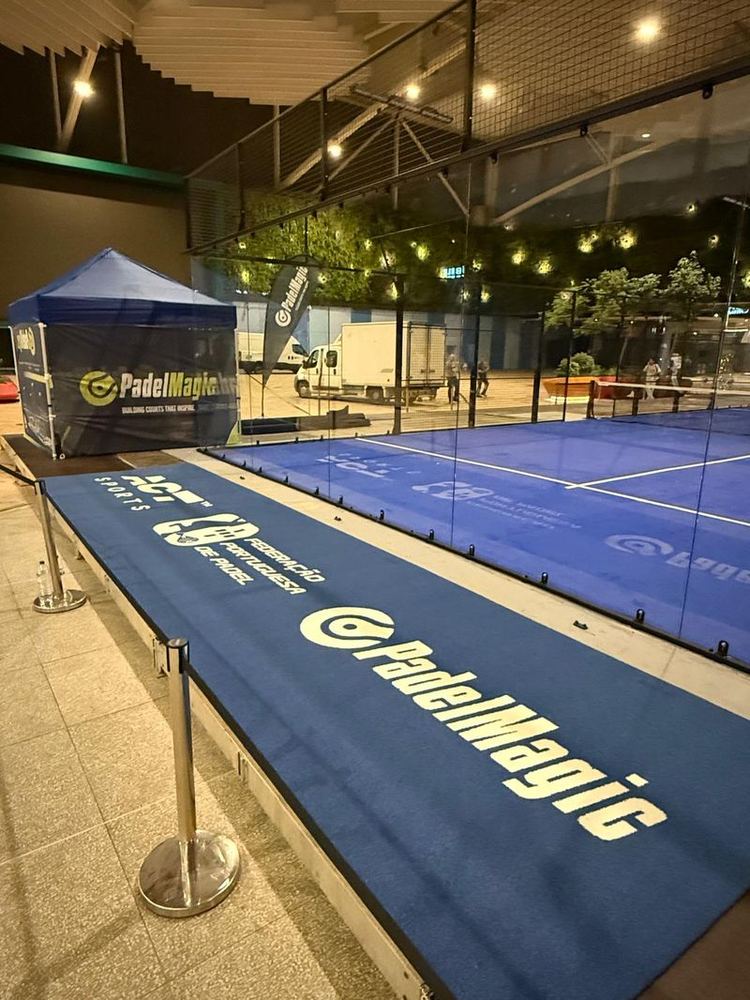

FIP Ubbo, Portugal
Portugal FIP Ubbo, Portugal

Before deciding

Frequently asked questions

Does PadelMagic manufacture its own courts?

Yes. The structure is cut, welded and painted at our factory in Valladolid, and every joint has a machined 4 mm inner joint bushing. We also manufacture courts for other brands, which sell them under their own logo.

What is the lead time to replace a glass panel?

We keep tempered glass in stock at the factory, so a replacement is made within days. When glass is imported by sea, a court can remain out of service for up to two months.

Who carries out the installation?

Our own installation team, the same on every project, whether in Copenhagen, Tbilisi or the Maldives. Any adjustment on site is handled directly by the manufacturer, with no intermediaries.

Can the order status be tracked?

Yes. The client has access to our manufacturing intranet, which shows the stage of each part (welding, painting and loading) with the dates the workshop records as each stage is closed. It includes the proforma, the packing list and a direct communication channel linked to the order.

Does it meet competition standards?

The tempered glass complies with EN 12150-1 and EN 12150-2, the playing surface measures 20 × 10 m in accordance with International Padel Federation rules and the turf is FEP and FIP 2026 certified. The court is ready for official competition.

Can it be manufactured in the club’s colours?

Yes. The structure is oven-cured powder coated in any RAL colour. As manufacturers, we produce corporate colours, special dimensions and custom vinyls to order, without being limited to a closed catalogue.

Can technology be added after installation?

Yes. The structure leaves the factory with cable routing and fixings already provided, so the LED scoreboard, cameras or smart bench can be added later with no additional works and no exposed trunking.

Exclusive to PadelMagic

Factory-integrated solutions

Three PadelMagic-exclusive solutions, integrated at the factory on this same structure.

A quote for this model

Tell us how many courts and where. We send the breakdown and the 3D render.
